Audiogravity User manual

3. First run — guided audio setup

The first time you open Audiogravity, a few guided steps take you from a bare box to music playing — without touching a config file.

1. Your trial activates automatically

A 30-day trial — full access to every Pro feature — is activated on first run. No action required, no card. When it ends you can keep using the free Starter features or buy a lifetime licence (see 7. Administration → Licence).

2. Sign in — and secure your account

Audiogravity ships with one administrator account: username admin, password admin123. Sign in with it, then change the password right away (Admin tab → your user card) — the default is public knowledge.

After your first password login, Audiogravity offers to register a passkey on the device — Face ID, Touch ID, a fingerprint or a hardware key. Accept, and every later login becomes a tap: the login screen recognises the device and asks for the passkey directly, with Use password instead as the fallback. (Passkeys require Audiogravity to be reachable over a real HTTPS domain — see the --public-url flag in 2. Installation.)

More accounts — family members, a read-only guest — can be added later from the Admin tab (see 7. Administration).

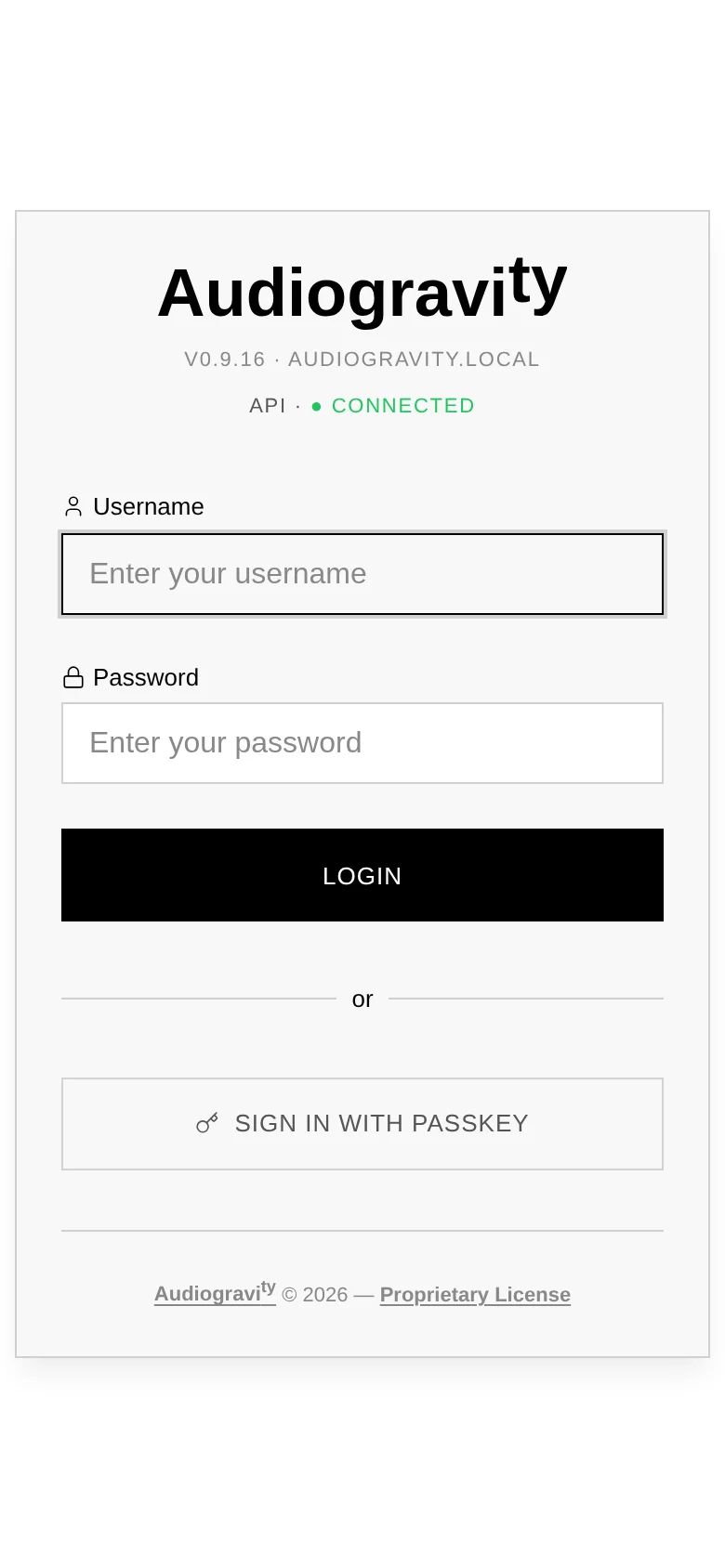

The login screen: username and password, or one-tap sign-in with a passkey

3. Install the audio engines

The installer sets up Audiogravity itself — not the audio engines it conducts. On a fresh box, install those first from the Audio Software tab (see 7. Administration → Audio Software): each engine has a card with an INSTALL button.

  • Music Player Daemon (MPD) — the core player. Install this one first: it plays your local library and carries Qobuz, Tidal, HIGHRESAUDIO and internet radio.
  • Shairport Sync — to receive AirPlay.
  • UPnP Bridge (upmpdcli) — to expose the box as a UPnP renderer other apps can cast to.
  • Roon Bridge / Roon Server / HQPlayer NAA — only if you use Roon or HQPlayer.

Install what you need now — you can always come back for the rest later.

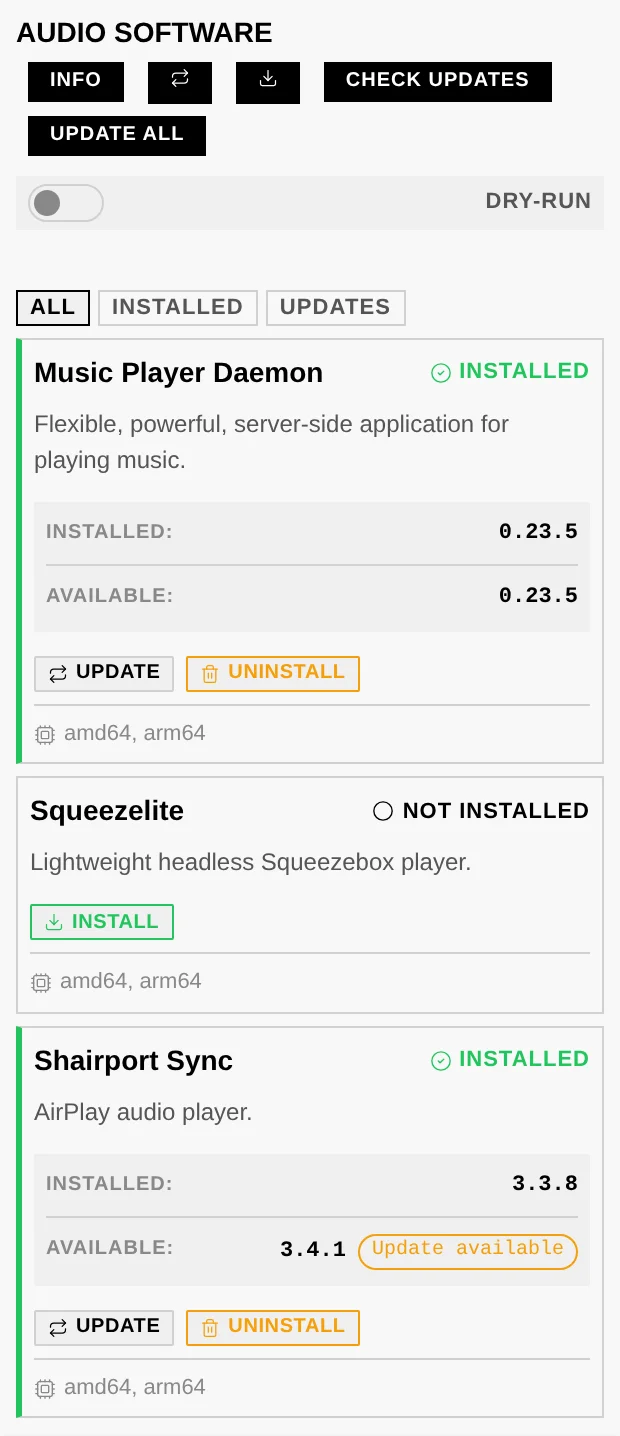

The Audio Software tab: engine cards with install, update and uninstall actions

4. Configure the audio stack (guided)

On a new box, the Config tab shows an Initialize audio stack panel (administrators only). It:

  1. Auto-detects your DAC and your music library.
  2. Generates a minimal, bit-perfect configuration for the three audio services — MPD (local library), AirPlay (shairport-sync) and UPnP (upmpdcli) — all wired to the output you choose.
  3. Asks for your admin password before applying.

Once at least one service is set up, the panel disappears and each MPD / AirPlay / UPnP tile shows a CONFIGURED badge.

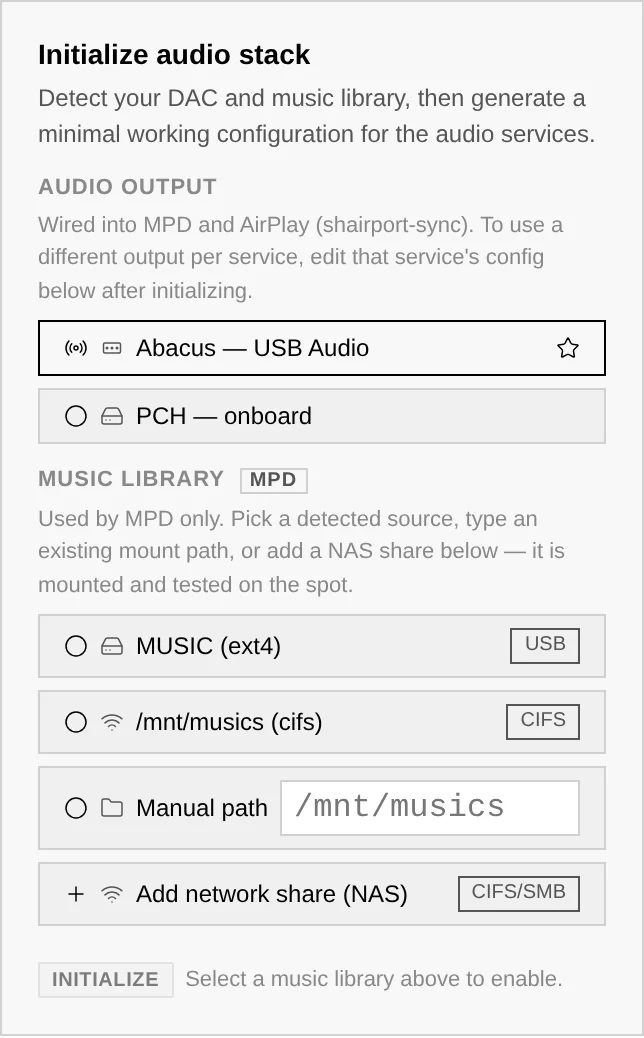

The Initialize audio stack panel: detected DAC outputs and music library sources

Why "bit-perfect"? The generated configs send audio to your DAC untouched — no resampling, no volume math in the digital domain — so what your DAC receives is exactly what the file contains.

Raspberry Pi with a HAT DAC? A board stacked on the GPIO header is not detected until Linux is told it exists, so it will be missing from this panel. Declare it once at the OS level — see 9. Troubleshooting → My DAC is not in the output list — then come back here.

The DAC stays put

When you configure a USB DAC, Audiogravity pins its sound-card index at the OS level. Linux then always gives that DAC the same number, even after a reboot or a USB re-plug — so the output your services target never drifts and nothing needs re-checking at startup.

Per-service outputs

Each service can target its own output. For example: MPD on your USB hi-res DAC, AirPlay on the optical out. Change any service's output later from the Guided editor (see below) in a couple of clicks.

Music on a NAS? Add the share from the picker

The Music library picker lists what the box can already see: USB drives (ext4 / exFAT) and existing mounts. For a NAS share (CIFS/SMB — what Synology, QNAP and every mainstream NAS speak), use Add network share (NAS) at the bottom of the picker: give it a name, the NAS host, the share name and — unless it's a guest share — its username and password. Audiogravity mounts and tests the share on the spot: on success it appears in the list, pre-selected; on failure you get the actual mount error (wrong password, unreachable host) and nothing is left behind.

Under the hood this creates a systemd mount-on-access unit — robust to a NAS that is off at boot — with the credentials in a root-only file, mounted read-only by default.

Adding a share mounts and selects it, but does not yet make it MPD's library on its own — that's the same two-step rule as any source: pick it in the picker, then confirm — click INITIALIZE (in the panel) or Apply (in the Guided editor) to actually point MPD at it. That confirm step also starts a library scan so the new music is indexed and shows up in the Library view (a large NAS keeps indexing in the background — give it a moment). To remove a share, reopen the panel: each one it created is listed with its state (mounted / on-demand) and a trash button — removing one it isn't currently using takes effect immediately; if the share is MPD's active library, it warns you first.

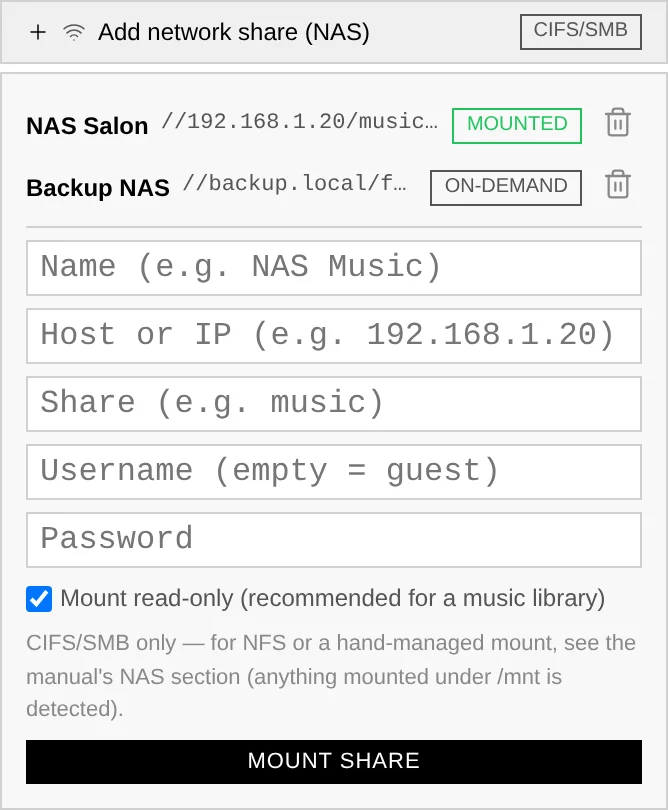

The Add network share panel: existing AG shares with their state, and the CIFS form

Prefer the terminal, or need NFS? Any share you mount yourself at the OS level (fstab or systemd units, CIFS or NFS) under /mnt is detected exactly the same way — see 9. Troubleshooting → Manual NAS mount for the recipe. NFS is terminal-only by design: mounting it from the UI would require RPC daemons on the box, which Audiogravity refuses on an audio appliance.

5. Change output or library later (Guided mode)

For MPD, AirPlay and UPnP, the Config editor opens in a Guided view where you change the audio output or music library in a couple of clicks. Only the setting you touch is rewritten — the rest of your config is preserved. A Reset to default action regenerates a clean minimal config (admin password required; your current file is backed up first).

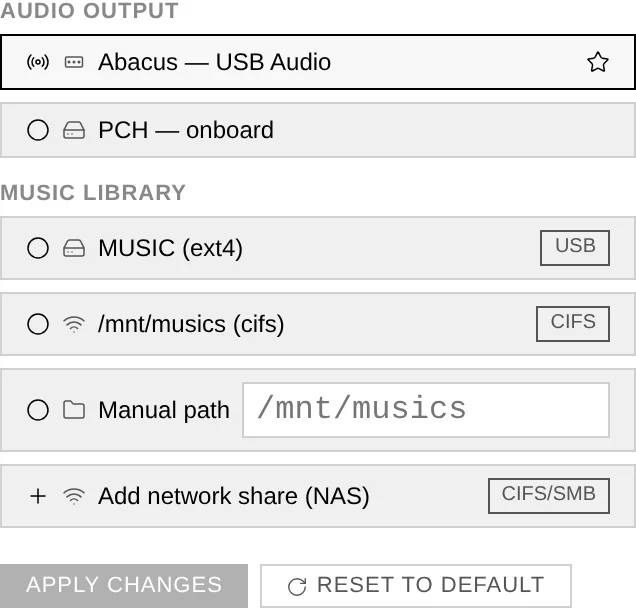

The Guided editor: pick the audio output and the music library in a couple of clicks

6. Find your way around

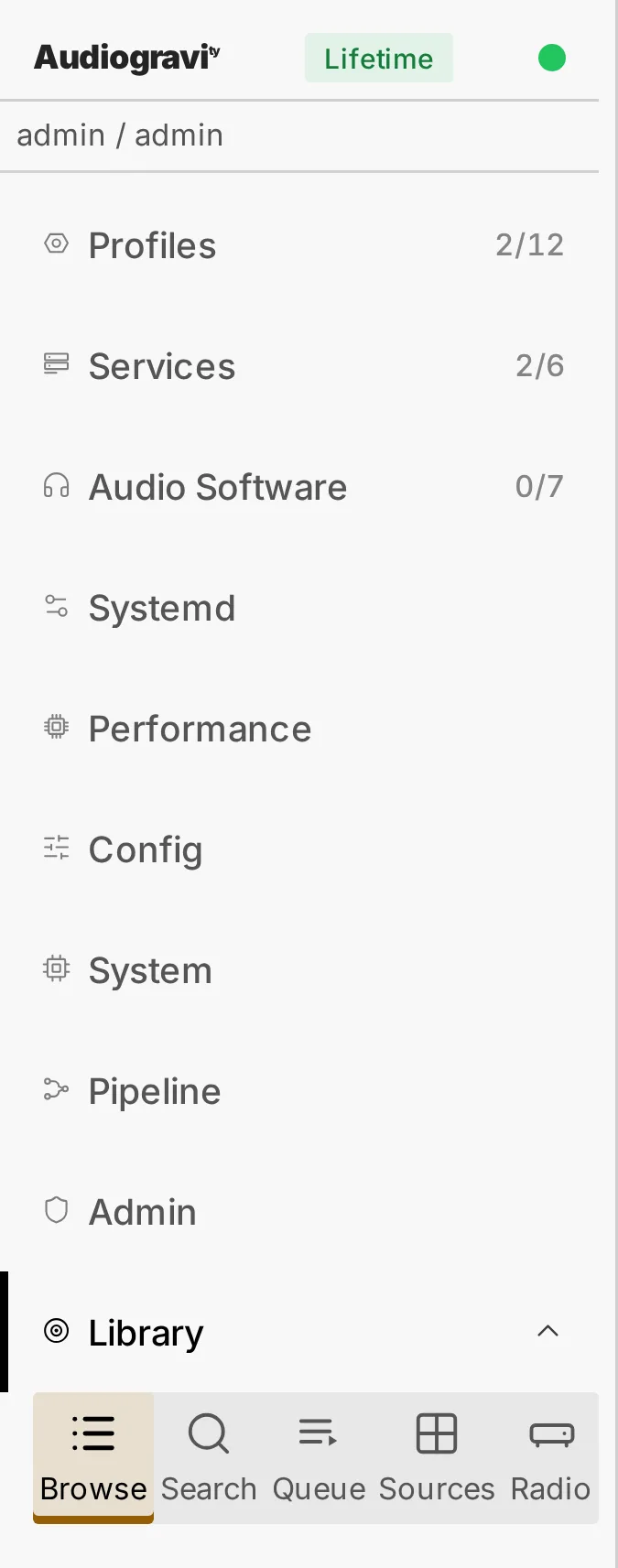

The tab bar (across the top, or a sidebar in the vertical layout) is the app's map:

  • Profiles · Services · Audio Software · Systemd · Performance · Config · System — running the box: audio scenarios, service control, engine installs, OS tuning, config files and monitoring (all covered in 7. Administration).
  • Pipeline — the live signal-path view (Pro; see 6. Outputs & engines).
  • Library (Pro) — browse, search, queue, sources and outputs: where you play music.
  • Admin — users and access, announcements, updates and the licence.
  • Manual — this manual, readable inside the app.

On a Starter licence the Pro tabs carry a small lock — tapping one opens the licence panel. Config is not one of them: editing a service's configuration file and the guided setup are available on every edition — configuring the machine is part of owning it. The sticky Now Playing bar sits above the footer whatever the tab, and the gear in the top bar opens Settings.

7. Trust the box's certificate (once per device)

If you chose HTTPS at install, the box created its own certificate authority and signed the interface's certificate with it. Your browser does not know that authority, so the first visit shows a security warning.

Accepting the warning is enough to look around. It is not enough to install Audiogravity as an app: a phone only grants a site an app icon, an offline start and notifications once it trusts the certificate. That is one operation per device, and it holds for years — the authority is created once and never replaced, even when the interface's own certificate is renewed or the box changes address.

  1. On the device, open http://<box-address>:8081/ca.crt — the installer prints this exact address at the end.

    Note the http://. The certificate is deliberately handed out unencrypted, on a port that serves this one file and nothing else. Over https:// it could not be fetched at all: doing so would mean trusting the very certificate you are coming to collect, and Safari on iOS refuses outright. A certificate authority is public by design — it is the thing you are meant to distribute — and it carries no key.

  2. Then, depending on the device:

Device What to do
iPhone / iPad Open the address in Safari and allow the download. Then Settings → Profile Downloaded → Install. That installs it — and installing is not trusting: go to Settings → General → About → Certificate Trust Settings and switch Audiogravity Local CA on (the entry carries the box's address after that name). That last switch is the step that counts; without it nothing changes. (Verified end to end on iOS: afterwards the interface opens with no warning and installs as an app.)
Android The goal is to install the file as a trusted certificate authority from the system settings — that is the only place Android allows it. Look under Security for Encryption & credentials, then Install a certificate (or Install from storage) → CA certificate, and pick the file you downloaded. We give no exact path on purpose: it differs between Android versions and between manufacturers, so a fixed one would be wrong for most phones. Two things stop people: the phone must have a screen lock (PIN, pattern or password), or Android refuses to store an authority at all — set one first; and since Android 11 only the Settings app may start the install, so tapping the downloaded file in Chrome does nothing. Android then warns that a third party could inspect your traffic — here that third party is your own box. ⚠️ Unlike iOS, this has not been verified on an Android device: the certificate should be trusted for browsing, but we have not confirmed that Audiogravity then installs as an app.
macOS Open the file in Keychain Access, then set it to Always Trust.
Windows Install it into Trusted Root Certification Authorities.

Why not simply a real certificate? Because a public authority will not certify a private address like 192.168.1.30. If you would rather have a certificate every device trusts with no manual step — and you also want passkeys and push notifications, which a self-signed setup can never provide — give the box a domain name and a real certificate: see 2. Installation → Getting HTTPS.

Audiogravity is an installable web app (PWA): added to your home screen it opens fullscreen, in its own window, with the app icon. On a self-signed setup, do step 7 first — an untrusted certificate is what stops the app from installing.

  • Android — open the site in Chrome and accept the Install app prompt (or browser menu → Add to Home screen). The installed app also honours the Portrait Lock at the OS level. (On a self-signed setup this is the part we could not verify on an Android device — see the warning in step 7. With a real certificate and a domain name, it is not in question.)
  • iPhone / iPad — in Safari, tap Share → Add to Home Screen. On iOS this is also required for push notifications: Safari tabs can't receive them, the installed app can (see 7. Administration → Push notifications).
  • Desktop — Chrome and Edge offer an install icon in the address bar; handy for a dedicated always-open controller window.

Next

Your box now plays. Head to 4. Listening to start playing music, or 5. Library & streaming to connect Qobuz, Tidal, HIGHRESAUDIO and internet radio.
